In the field of motor control systems, bypass soft starters and online soft starters are two highly efficient and widely applied technologies. Although they differ in certain aspects, these two types of starters exhibit significant similarities in many key characteristics. Similarity One: Smooth Starting Whether it’s a bypass soft starter or an online soft starter, one of their main functions is to achieve smooth motor starting. By controlling the starting current, both types of starters can effectively reduce the current impact at startup, thus protecting the motor and connected mechanical equipment. Similarity Two: Energy-Saving Features Energy saving is another common advantage of bypass soft starters and online soft starters. They optimize the starting process and reduce unnecessary energy consumption, helping businesses reduce operating costs and improve energy efficiency. Similarity Three: Extended Equipment Life Using bypass soft starters and online soft starters can reduce mech

ZJSHUYI Dual power switch SYQ1-100GA/4P . www.shuyitop.com

Dual power switch is the switch that automatically switches to another power supply for a reason. General double power switch is widely used in high-rise buildings, residential areas, hospitals, airports, docks, fire protection, metallurgy, chemical industry, textile and other important places that do not allow power outage Web: www.shuyitop.com; Tel/Fax: 0086-577-62840011 Wechat/WhatsApp: 008613355775769 Zhejiang SHUYI Electric Co., LTD, Focus on switches with 30 years. #Dualpowerswitch #SYQ1-100GA/4P #zhshuyi #shuyitop

ZJSHUYI Why use a soft starter.#softstarter www.shuyitop.com;

Now the long used in transmission engineering is three-phase asynchronous motor. In many cases, these motors cannot be directly connected to the power system due to their starting characteristics. If started directly on line, a surge current of 6 times the rated current of the motor will be generated, which can overload the supply system and the series switchgear. If it is started directly, it will also produce a higher peak torque. This impact will not only impact the driving motor, but also make the mechanical device under load. For example, auxiliary power transmission components. To reduce the starting current, start auxiliary devices, such as starting reactors or autotransformers, should be used. However, this method can only gradually reduce the voltage, while the soft starter can realize non-impact starting by smoothly increasing the voltage of the gao terminal. Can better protect the power system and motor. Web:www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355

ZJSHUYI What is a motor starter? Soft starter function?#softstarter www....

Soft starter function (1) The startup mode and parameters can be modified on site to meet various startup requirements. (2) Not affected by temperature, stable startup performance, high restart precision. (3) IT has small size, long service life and convenient installation and maintenance. Web:www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #motorsoftstar #softstarters

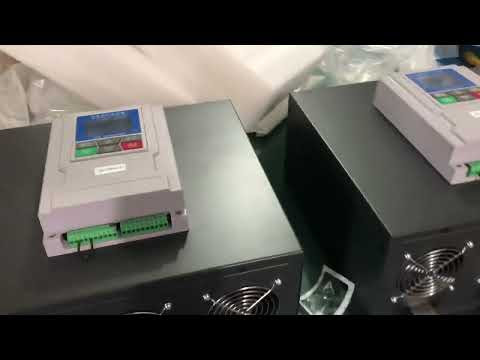

ZJSHUYI Instructions for using 200kw soft starting.www.shuyitop.com; #so...

First energize the soft start and then press the start button. When the number displayed on the screen reaches 100 percent, the motor starts to complete. When you want to stop the motor, press the stop button, the motor will stop running. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #motorsoftstar #softstarters

ZJSHUYI Soft starter use explanation#softstarter www.shuyitop.com;

1. Press the "Program" key to enter the parameter group, and press the "△ ▽" key to switch the parameter group. 2. To modify the parameter, press the first step to enter the corresponding parameter, press the "program" key to enter the parameter, press the "△▽" key to modify the parameter value, after the modification is completed, press the "confirm" key to save the parameter, and press the "confirm" key again to return Go to the main interface. 3. Press the "Run" key to start the soft starter. 4. Press the "Stop" button to stop. 5. In the standby state, press the "ruturn" button to view the fault record. 6. Long press the "△" key to clear the fault record. 7. Long press "▽" to restore factory settings. Web:www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #motorsoftstar #softstart

ZJSHUYI Frequency converter safe and reliable.www.shuyitop.com; #Frequen...

Inverter, this product uses intelligent detection circuit and automatic control system, so that the operation is more stable, reliable and safe; In the occurrence of overvoltage, overcurrent, short circuit and other faults, it will automatically detect the related components in the circuit, and make it send an alarm signal, in order to avoid greater trouble in the operation of the frequency converter, and provide more security for users; This product also has high reliable braking function (braking resistance is not less than 200KΩ), so that customers use safe and reliable; In addition, this product also has overvoltage protection (over the pressure set value automatically cut off the output), short circuit protection and other functions. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #Frequencyconverter#VFD#INVERTER

ZJSHUYI An article about "soft starters". www.shuyitop.com; #softstarter

During the starting process of the soft starter motor, the conduction angle of the thyristor gradually increases, the output voltage of the thyristor also gradually increases, and the motor accelerates from zero until the thyristor is fully turned on and the start is completed, thereby realizing the stepless smooth start of the motor. The maximum starting torque and starting current of the soft starter motor can be set according to the load. The main composition of the soft starter is a three-phase parallel thyristor and its electronic control circuit connected in series between the power supply and the controlled motor. Different methods can be used to control the conduction angle of the three-phase parallel thyristor, so that the input voltage of the controlled motor changes according to different requirements, and different functions can be realized. Soft starters and frequency converters are two completely different products. The frequency converter is used where speed regulation i

ZJSHUYI What is the base of a relay for. www.shuyitop.com; #Baserelay

1. The function of relay base is as follows: (1) Current relay: acting to reflect the increase of current, it acts as the starting element and measuring element of current protection. (2) Voltage relay: reflects the voltage change (too low or too low) and the action. (3) Time relay: as a time element, it is used to establish the necessary action delay. (4) Intermediate relay: its function is to increase the number of contacts in order to control different circuits; Increase the contact capacity to disconnect or switch on the circuit with high current; Provide the necessary delay to meet the requirements of protection and automatic devices. (5) Signal relay: in the protection and automatic device as an action indicator. Web: www.shuyitop.com; Tel/Fax: 0086-577-62840011 Wechat/WhatsApp: 008613355775769 #ZJSHUYI #Chinashuyi #shuyitop #breakers #MCB #MCCB #Baserelay

ZJSHUYI Do you know what is a fire control cabinet? www.shuyitop.com; #S...

Fire control cabinet (automatic control cabinet) is a kind of industrial control equipment that is more common in our lives, such as corridors, underground parking lots, gas stations and other public places. However, many friends do not know what it is called or what it is used for. The following ZJSHUI editor will explain what is a fire control cabinet. The fire control cabinet is a safe fire fighting tool provided by the pump factory. Its main purpose is to protect the pump motor from overvoltage, short circuit and overload. And also has a sound and light alarm function. It plays an important role in extinguishing fire and is also a fire safety device that can help control the fire after a fire occurs. There are many ways to start the control cabinet, including direct start, soft start, star-delta start, auto-coupling start, etc. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #motorsoftstar #softstarters #ZJSHUYI #Softstartcabinet

ZJSHUYI The phenomenon of inverter overcurrent.www.shuyitop.com; #freque...

The phenomenon of inverter overcurrent (1) When restarting, it trips as soon as the speed increases, which is a very serious phenomenon of overcurrent. The main reasons are: the load is short-circuited, the mechanical parts are stuck; the inverter module is damaged; the torque of the motor is too small, etc. (2) It jumps when it is powered on. This phenomenon generally cannot be reset. The main reasons are: the module is broken, the drive circuit is broken, and the current detection circuit is broken. (3) When restarting, it does not trip immediately but during acceleration. The main reasons are: the acceleration time setting is too short, the current upper limit setting is too small, and the torque compensation (V/F) setting is high. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #VFD #INVERTER #frequencyinverter #frequencyconverter

ZJSHUYI Ac contactor circuit breaker relay shipped! www.shuyitop.com; #A...

Zhejiang Shuyi Electric Co., Ltd., the original soft starter; frequency converter is a professional manufacturer and exporter of electrical and electronic products in China. Specializing in research and development, production and sales. Main products: soft starters; frequency converters; automatic transfer switches; AC contactors; switches; relays. Most of the products have passed CCC, CE, VDE, UL, CQC certification. Our website :www.shuyitop.com. will always update the latest industry information and product information, you can pay attention to it when you are free. Thanks in advance ! www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #frequencyconverters#automatictransferswitches #ACcontactors #switches #relays#chinashuyi #shuyitop #MCCB

ZJSHUYI What is an AC contactor. www.shuyitop.com;#accontactor

The AC contactor uses the main contact to open and close the circuit, and uses the auxiliary contact to execute the control command, so as to complete the power switch and control circuit. Normally, the main contact generally has only normally open contacts, and the auxiliary contact often has two pairs of normally open and normally closed functions of the contact. Next, it is described in detail through its composition, classification, basic parameters, selection parameters, operation and maintenance. It is mainly composed of four parts :(1) electromagnetic system (2) contact system (3) arc extinguishing device (4) insulation shell and accessories The selection parameters of AC contactor include: rated voltage; Rated current; Rated voltage of the coil; Frequency of operation; Working current of auxiliary contacts. Here is also an introduction to the points of attention in the selection of rated current: continuous operation of contactor, according to the selection of 67-75%, for exam

ZJSHUYI What is an AC contactor. www.shuyitop.com;#accontactor

The AC contactor uses the main contact to open and close the circuit, and uses the auxiliary contact to execute the control command, so as to complete the power switch and control circuit. Normally, the main contact generally has only normally open contacts, and the auxiliary contact often has two pairs of normally open and normally closed functions of the contact. Next, it is described in detail through its composition, classification, basic parameters, selection parameters, operation and maintenance. It is mainly composed of four parts :(1) electromagnetic system (2) contact system (3) arc extinguishing device (4) insulation shell and accessories The selection parameters of AC contactor include: rated voltage; Rated current; Rated voltage of the coil; Frequency of operation; Working current of auxiliary contacts. Here is also an introduction to the points of attention in the selection of rated current: continuous operation of contactor, according to the selection of 67-75%, for exam

ZJSHUYI What are the application scenarios of soft initiators?www.shuyit...

1. It is required to reduce the starting current of the motor. 2. In normal operation, the motor does not need to have the function of speed regulation, only to solve the working state of the starting process. 3. The load is not allowed to reduce voltage and speed during normal operation. 4. If the motor power is larger than 100kw, it will cause bad influence to the operation of the main voltage transformer when starting. 5. The operation of the motor has strict requirements on the grid voltage, and the voltage drop is no more than 10%U. 6. No starting impact is allowed when the equipment starts. 7. The starting torque of the equipment is not large, and it can be started with no load or light load. 8. Medium and large motors need energy-saving starting. From the initial investment, it is more economical to use autocoupling step-down starting for motors with power below 75KW, while it is more economical to use soft starter for motors with power between 90-250kw. www.shuyitop.com; Tel/F

ZJSHUYI A relay is a component that is often used as a switch in a circu...

A relay is a component that is often used as a switch in a circuit. According to the type of control voltage required by its coil, it can be divided into AC relays and DC relays. The specifications of the relay are expressed by the coil control voltage and the contact current. Usually, when the load current is less than 10A, the contact of the relay can be used to directly connect or cut off the circuit. When the load current is too large, it can be used as an indirect control part. Relays are generally composed of iron cores, coils, armatures, contact springs, etc. As long as a certain voltage is applied to both ends of the coil, a certain current will flow through the coil, and an electromagnetic effect will be generated. contacts (normally open contacts) attract. After the coil is powered off, the electromagnetic attraction also disappears, and the weighing iron returns to its original position under the reaction force of the spring, releasing the moving contact and the original sta

ZJSHUYI The role of the intermediate relay. www.shuyitop.com; #Intermedi...

The role of the intermediate relay So why distinguish between intermediate relays and AC contactors? AC contactors mainly play the role of controlling the power supply in the circuit and are used in the main circuit of the main circuit, while the intermediate relays mainly exist in the control circuit, which controls the circuit, Convert and expand the role of contacts. When the auxiliary contacts of the AC contactor are not enough, the contacts of the intermediate relay can be used instead. However, the contact capacity of the intermediate relay is relatively small, generally around 5A. It is possible for circuit feedback or control, but It cannot directly drive high-power loads. What is the difference between AC and DC? Having said so much, what is the difference? First of all, we need to understand that AC means AC voltage level, commonly used are 220VAC, 380VAC. DC means DC voltage level, commonly used are 12VDC, 24VDC, if you want to get DC voltage requires the use of a switching

ZJSHUYI Can a high-power soft starter carry a small motor?www.shuyitop.c...

Generally, the soft start specification of low-voltage motor is 5.5-600KW, which is mainly used for the start and operation protection of different power motors. The power cabinet with soft starter can not add other motor protection products, only the circuit breaker, soft start, measuring instrument and related buttons in the cabinet can be. Because the soft starter has integrated current and voltage protection, such as overcurrent, overload, undervoltage and lack of equal. There is no need to add additional protectors. If the high power soft starter debugging cabinet is best with a light bulb. For example, 200KW with a small motor can start, very fast, because the rated current of the small motor is small, high-power soft starter can not detect the running current, it will report the lack of phase fault. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #softstarterprice #softstartcabinet #ZJSHUYI #Chinashuyi

ZJSHUYI What parameters need to be adjusted for soft start. www.shuyitop...

Main voltage range, main current range, control voltage, soft start time, soft stop time, initial voltage. Motor soft start is to achieve smooth start of motor and mechanical load by adopting technical means such as voltage reduction, compensation or frequency conversion, reducing the impact of starting current on the power grid, and protecting the power grid and mechanical system. Make the output torque of the motor meet the requirements of the mechanical system for the starting torque, ensure smooth acceleration, smooth transition, and avoid destructive torque impact; make the starting current meet the requirements of the motor's bearing capacity, and avoid the insulation damage or burning caused by the motor's starting heat; make the starting current Meet the requirements of relevant standards for power quality of the power grid, reduce the voltage sag amplitude, and reduce the content of high-order harmonics. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355

ZJSHUYI The difference between frequency converter and servo drive www.s...

Inverter and servo drive are the most widely used driving equipment in the transmission system. When talking about the difference between the two, many people only know that inverter is often used in low-end mechanical equipment, while servo drive is mostly used in high-end mechanical equipment. This is a relatively general statement. Frequency converter is a power control device that uses the on-off function of power semiconductor devices to convert power frequency power into another frequency. It can realize the functions of soft start, frequency conversion, speed regulation, improving operation accuracy and changing power factors of AC asynchronous motor. Frequency converter can drive frequency conversion motor, common AC motor, mainly acts as the role of adjusting the motor speed. Frequency converter is usually composed of rectifier unit, intermediate circuit, inverter and controller. Servo system is an automatic control system that enables the object's position, orientation, s

ZJSHUYI How to control soft start with buttons.www.shuyitop.com; #softst...

How to control soft start with buttons 1. First understand the secondary control loop of soft start. Generally, soft start has bypass contactor output node. 2. Know the load start-up time again. The best time to cut the bypass contactor is after the start-up process is completed. 3. The main circuit of the bypass contactor should be connected in parallel with the soft starter. 4. String the output node of the bypass contactor into the control loop of the bypass contactor, preferably a self-locking loop. Among them, the external contactor is used for direct starting, which is in a parallel relationship and requires electrical interlocking. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #motorsoftstar #softstarters #softstartechnology #latestpowerstarter #softstarterby -passconnector

ZJSHUYI The reason for the total burnout of the inverter with the motor....

1. When the motor current in the inverter is set too large, the motor protection parameter is set too large, and the inverter cannot protect the motor according to the actual current of the motor when the motor is overloaded, which will cause the motor to overload, heat, or burn. 2. When the motor speed is not set correctly, if the set speed exceeds the rated speed of the motor, the motor will run in the constant power area at a higher speed at the rated frequency point. The higher the speed, the smaller the output torque, which will cause the motor Excessive current overheats or burns the motor. 3. If the acceleration and deceleration time of the motor is too short, the inverter will report an overcurrent fault for protection. 4. The inverter adopts vector control, but the motor and the inverter do not have paired self-learning, which causes the parameters of the inverter to control the motor to be inconsistent with the actual value of the motor, causing the control accuracy to deteri

ZJSHUYI Usually the soft start system is composed of softstart device. w...

Usually the soft start system is composed of softstart device, peripheral circuit and motor load. Therefore, the objects protected by the soft start system are also the soft start device, peripheral circuit and motor load. The purpose of protecting the soft start system is to ensure the safe and reliable operation of thyristor components, #softstarter equipment and circuits, and not damage or cause safety accidents under various abnormal working conditions. The premise of #softstarter protection is that the design of the soft starter itself should be correct. The thyristor components are correct and used correctly, the drive circuit and the control circuit are reasonably designed and matched with each other, so that the device can work in a good state. These measures are the basis for the safe and reliable operation of the soft starter. Only under this premise, can the devices, circuits, and equipment fail less and not fail from the inside, and the optimized system design should aim

ZJSHUYI Influence of switching frequency on inverter output current.www....

Influence of switching frequency on inverter output current The inverter (DC/AC conversion) part of the inverter is formed by the IGBT through the sine pulse width modulation SPWM, and then through the motor winding to form a sine wave current waveform. Then the size of the switching frequency directly affects the quality of the current waveform, as well as the size of the interference, and the size of the switching frequency is more sensitive and direct. Consider adding various harmonic suppression devices, such as AC reactors, DC reactors, filters, additional sequence reactors, as well as installation wiring, grounding and other measures. This approach is more reasonable and effective, and must not be reversed. To deal with the problem, this is a very important principle. When the switching frequency is high, the current waveform is sinusoidal and smooth. In this way, the harmonics are small, the interference is small, and vice versa, when the switching frequency is too low, the effe

ZJSHUYI Advantages and disadvantages of built-in #softstarter. www.shuyi...

The advantages of the built-in #softstarter can be roughly divided into the following four points: the first circuit is simple The built-in bypass soft starter adopts the wiring method of three inputs and three outputs. The second is natural air cooling. The thyristor is only responsible for starting and stopping, which avoids the power consumption and heat dissipation caused by the online operation of the thyristor. The third saves the space of the complete set, and does not need to install an AC contactor. The fourth and better protection function is due to the integrated design of the thyristor and the mechanical contact. The intelligent controller realizes that the mechanical contact has no arc, so that the electrical life of the mechanical contact is equal to the mechanical life, which solves the problem that the contactor has long been difficult to achieve. Compared with the bypass soft starter, the reliability of the contactor is greatly improved. www.shuyitop.com; Tel/Fax: 00

ZJSHUYI The working principle and main features of the soft starter. www...

The soft start is mainly composed of three pairs of anti-parallel thyristor voltage regulating circuits connected in series between the power supply and the controlled motor. Modern soft starters basically use power electronic technology and microcomputer control technology, and use a single-chip microcomputer as the central controller control core to complete the measurement and various control algorithms. Therefore, the soft starter has a strong function and flexibility. The whole starting process is carried out automatically under the control of digital program software. Using the electronic switching characteristics of the three pairs of thyristors, the size of the trigger angle is changed by controlling the trigger pulse sooner or later by the MCU or the single-chip microcomputer. And changing the size of the trigger conduction angle changes the conduction time of the thyristor, and finally changes the size of the three-phase voltage of the stator winding. www.shuyitop.com; Tel/F

ZJSHUYI Debug sequence of soft starter.www.shuyitop.com; #softstarter

Debug sequence of soft starter: 1. Selection of starting mode and starting time of soft starter: ① For soft starters of general power, the larger the load, the longer the starting time; ② When the quality of power supply of the power grid is relatively high, the current limit start can be selected, and the same load The larger the value, the longer the startup time should be. 2. Check whether the motor can rotate normally and flexibly, otherwise it will never start. 3. Check the parameters of the fan, motor and soft starter. Parameters checked include voltage, current, power, and the number of poles of the motor. 4. The commissioning sequence is manual cranking, air-dropping control loop, motor idling, and running with load. 5. Check the insulation resistance of the motor. This work must be done before the motor is connected to the soft starter, because the starting circuit is composed of thyristor components. When the motor and the soft starter are connected, if the motor insulation r

ZJSHUYI Classification of Circuit breakers.www.shuyitop.com; #MCCB

According to the operation mode: there are electric operation, energy storage operation and manual operation; According to the structure: there are universal type and plastic shell type; According to the category of use: optional and non-selective; According to the arc extinguishing medium: oil-immersed, vacuum and air; According to the action speed: there are fast type and ordinary type; According to the number of poles: there are unipolar, bipolar, tripolar and quadrupole, etc.; According to the installation method: there are plug-in type, fixed type and drawer type. A circuit breaker is generally composed of a contact system, an arc extinguishing system, an operating mechanism, a release, and a casing. Web: www.shuyitop.com; Tel/Fax: 0086-577-62840011 Wechat/WhatsApp: 008613355775769 #ZJSHUYI #Chinashuyi #shuyitop #breakers #MCB #MCCB

ZJSHUYI This section describes how to set parameters for the soft initia...

Reasons why the motor soft starter cannot start: The parameter setting is unreasonable Solution: Re-adjust the parameters, increase the initial voltage appropriately, and lengthen the time appropriately. Full load start at start Solution: try to reduce the load when starting. Motor phase loss Solution: Check the motor and peripheral circuits. The main component thyristor in the soft starter is short-circuited Solution: Check whether the motor and grid voltage are abnormal, and contact the manufacturer to replace the thyristor. Filter board breakdown short circuit Solution: replace the filter board. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #softstarterprice #ZJSHUYI #Chinashuyi #acmotorsoftstarter

ZJSHUYI motor soft starter Main circuit terminal wiring.www.shuyitop.com...

Main circuit terminal wiring 1. The three-phase input power is connected to the R, S, and T input terminals of the motor soft starter after passing through the circuit breaker. There is no phase sequence requirement for the three-phase power supply. 2. To control the running and stopping of the motor soft starter, the run and stop keys on the operation panel or an external control loop should be used. 3. The motor soft starter is connected to the bypass electromagnetic contactor, and the phase sequence of the bypass connection is consistent and corresponding. 4. Capacitors and surge absorbers shall not be installed between the output terminals of the soft starter and the motor. 5. The grounding terminal of the motor soft starter must be well grounded. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #motorsoftstar #softstarters #softstartechnology #softstartermarket #softstarterprice #ac powersoftstarterwithbuilt-inbypass #builtinbypasssoftst
