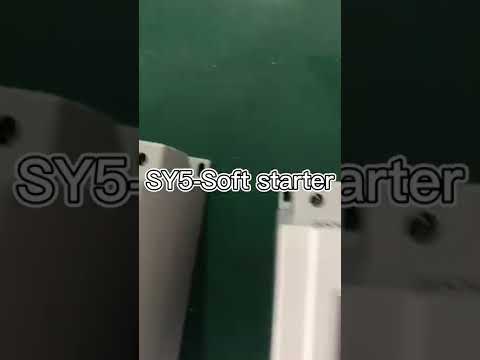

ZJSHUYI motor soft starter Main circuit terminal wiring.www.shuyitop.com...

Main circuit terminal wiring 1. The three-phase input power is connected to the R, S, and T input terminals of the motor soft starter after passing through the circuit breaker. There is no phase sequence requirement for the three-phase power supply. 2. To control the running and stopping of the motor soft starter, the run and stop keys on the operation panel or an external control loop should be used. 3. The motor soft starter is connected to the bypass electromagnetic contactor, and the phase sequence of the bypass connection is consistent and corresponding. 4. Capacitors and surge absorbers shall not be installed between the output terminals of the soft starter and the motor. 5. The grounding terminal of the motor soft starter must be well grounded. www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #softstarter #motorsoftstar #softstarters #softstartechnology #softstartermarket #softstarterprice #ac powersoftstarterwithbuilt-inbypass #builtinbypasssoftstarter #singlephasemotorsoftstarter #ZJSHUYI #Chinashuyi
