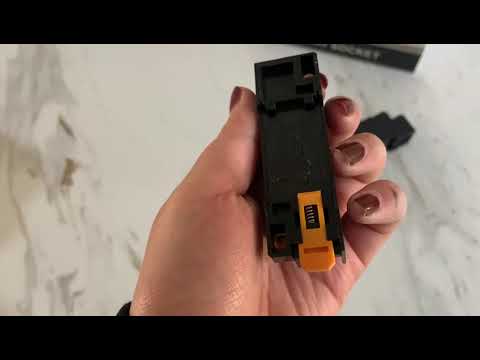

ZJSHUYI What is the base of a relay for. www.shuyitop.com; #Baserelay

1. The function of relay base is as follows: (1) Current relay: acting to reflect the increase of current, it acts as the starting element and measuring element of current protection. (2) Voltage relay: reflects the voltage change (too low or too low) and the action. (3) Time relay: as a time element, it is used to establish the necessary action delay. (4) Intermediate relay: its function is to increase the number of contacts in order to control different circuits; Increase the contact capacity to disconnect or switch on the circuit with high current; Provide the necessary delay to meet the requirements of protection and automatic devices. (5) Signal relay: in the protection and automatic device as an action indicator. Web: www.shuyitop.com; Tel/Fax: 0086-577-62840011 Wechat/WhatsApp: 008613355775769 #ZJSHUYI #Chinashuyi #shuyitop #breakers #MCB #MCCB #Baserelay
