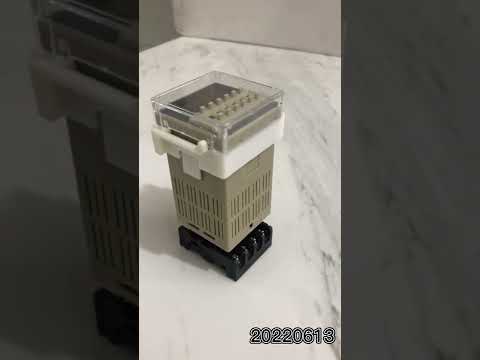

ZJSHUYI Ships today——digital time relay.www.shuyitop.com; #digitaltimere...

The digital display time relay is an important period that can control the electrical system. It is generally divided into two types, one is an electrical appliance that can be powered on and delayed, and the other is an electrical appliance that can be powered off and delayed. The working principle of the digital display time relay includes electronic and mechanical actions. In the electronic action principle, the combination of capacitors and electronic components is often used to achieve the effect of delay. The mechanical action is to use the airbag and spring. The digital time relay is a single-pole, double-throw switch with a rod wall with an active point, just like the knife switch we see in our daily life, it can move up and down, especially the 8th position, this is a Active point, and position 5 is a normally closed point, when the digital time relay does not move, connect these two together. But in the action state, it is necessary to connect the 8th interface and the 6th interface together. we are the manufacturer; Automation control solution provider; Focus on soft starters; Frequency converter; 30 year old control panel. we provided one-stop solution service, and have 20 years experience of it www.shuyitop.com; Tel/Fax: 0086-577-62840011 WhatsApp: 008613355775769 #ZJSHUYI #Chinashuyi #digitaltimerelay #relay
